Automatic Ribbon Bow Making Machine

Automatic ribbon bow making machine is designed for producing decorative bows and is widely used in industries such as garments, gift packaging, and accessories.

Parameters

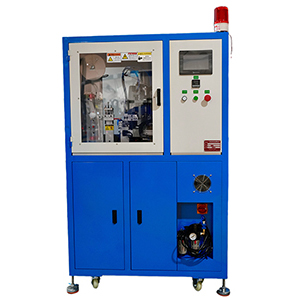

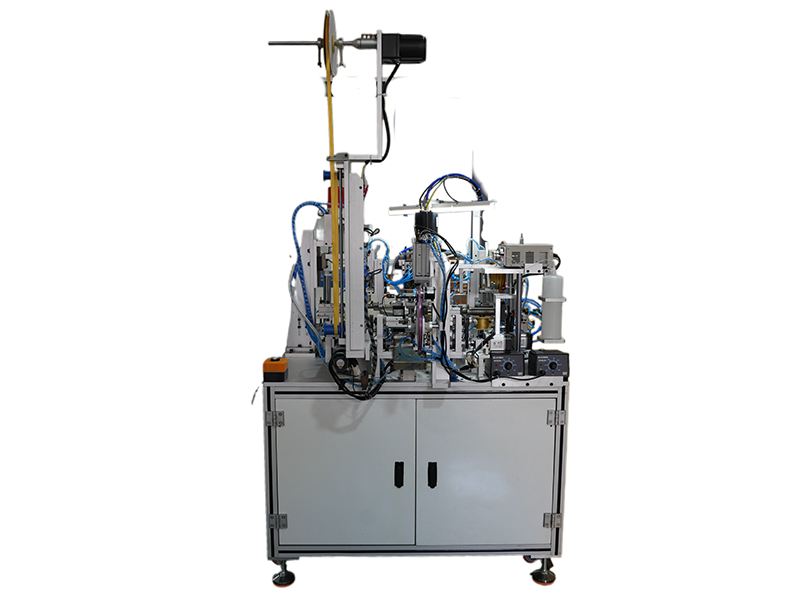

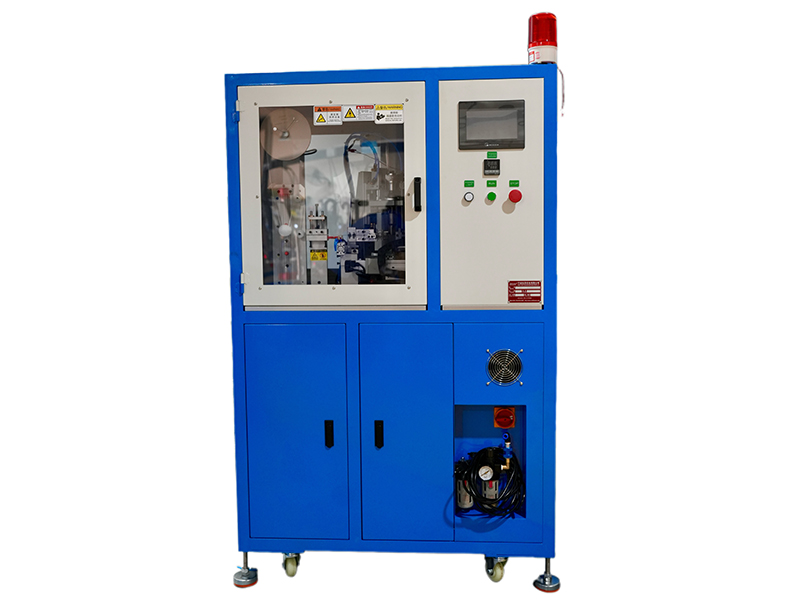

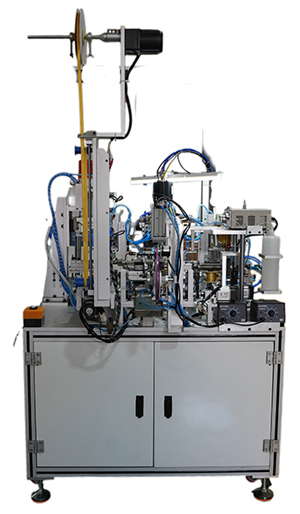

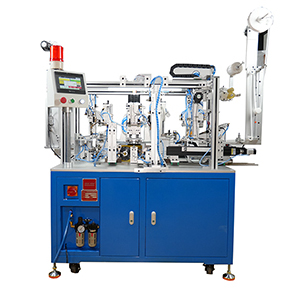

	JHT-20 Ribbon Bow Making Machine	JHT-60 Bow Making Machine (Center-Wrapped)	JHT-80 Ribbon Bow Making Machine (Wire-Tied)
Model	JHT-20	JHT-60	JHT-80
Width of ribbon	3–10 mm	12–25 mm	6–12 mm
Length of ribbon	85–200 mm	250–330 mm	90–140 mm
Power consumption	0.7 kWh	0.7 kWh	0.7 kWh
Efficiency	±1800 pcs/h (standard)	±600 pcs/h (standard)	±700 pcs/h (standard)
Drive system	Motor & pneumatic
Air pressure	0.6 MPa	0.6 MPa	0.6 MPa
Machine size	1100 × 900 × 1650 mm	1400 × 1100 × 1650 mm	1150 × 850 × 1400 mm
Weight	200 kg	200 kg	200 kg
Noise level	75 dB	75 dB	75 dB
Angle	Adjustable	Adjustable	Adjustable
Motor system	Servo motor & stepper motor
Machine power	1.5 kW	2 kW	2 kW
Motor power	1 kW	1.5 kW	1.5 kW
Voltage	220V	220V	220V
